Cisco Room Kit EQ PTZ 4K - Non- Radio - For Boardroom, Video Conferencing - CMOS - 3840 x 2160 Video (Live) - H.460.18/19, SIP, H.323, H.239 - 4K - 60 fps - H.264, H.265, H.263 - G.711, G.722, G.722.1

Name: Cisco Room Kit EQ PTZ 4K - Non- Radio - For Boardroom, Video Conferencing - CMOS - 3840 x 2160 Video (Live) - H.460.18/19, SIP, H.323, H.239 - 4K - 60 fps - H.264, H.265, H.263 - G.711, G.722, G.722.1
Brand: Cisco
SKU: CS-KIT-EQ-4K-NRK9
Availability: InStock

SKU CS-KIT-EQ-4K-NRK9

Request pricing

We confirm current pricing, stock, and lead time on request.

or request a custom quote

Free US shipping over $2,500.00
Government Purchase Card (GPC) accepted
Authorized Cisco partner, genuine warrantied hardware
TAA-compliant & DoDIN APL procurement paths
No payment up front, we confirm stock & final total

Overview

Cisco Room Kit EQ PTZ 4K - Non- Radio - For Boardroom, Video Conferencing - CMOS - 3840 x 2160 Video (Live) - H.460.18/19, SIP, H.323, H.239 - 4K - 60 fps - H.264, H.265, H.263 - G.711, G.722, G.722.1, G.729, AAC-LD, Opus - 5 x Network (RJ-45) - 3 x HDMI In - 3 x HDMI Out - Audio Line In - Audio Line Out - USB - Gigabit Ethernet - Wireless LAN - Internal Speaker(s) - Internal Microphone(s) - Wall Mountable, Rack-mountable (part number CS-KIT-EQ-4K-NRK9) is supplied by Uniqcli, an authorized Cisco partner, in the Cisco Video & Web Conference Equipment category. Audio Encoding: G.711, G.722, G.722.1, G.729, AAC-LD, Opus.

For Boardroom, Video Conferencing - CMOS - 3840 x 2160 Video (Live) - H.460.18/19, SIP, H.323, H.239 - 4K - 60 fps - H.264, H.265, H.263 - G.711, G.722, G.722.1, G.729, AAC-LD, Opus - 5 x Network (RJ-45) - 3 x HDMI In - 3 x HDMI Out - Audio Line In - Audio Line Out - USB - Gigabit Ethernet - Wireless LAN - Internal Speaker(s) - Internal Microphone(s) - Wall Mountable, Rack-mountable

• Fullfil all your conferencing needs with this video conference equipment that delivers clear, immersive sound and high quality video • 60 fps frame rate refresh swiftly and dodge human reception time to decrease the chances of motion blur. • Featuring Gigabit Ethernet port for ultra-high quality communication • Simply plug in RJ-45 port to connect the conference equipment on the network • With the 10/100/1000Base-T technology, get up to 1000Mbps data transfer rate over the twisted pair cable

Key specifications: Audio Encoding: G.711, G.722, G.722.1, G.729, AAC-LD, Opus · Speaker Form Factor: Internal · Microphone Form Factor: Internal · Environmentally Friendly: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) · Application/Usage: Boardroom, Video Conferencing · Package Contents: Cisco Codec EQ (Non-Radio) Cisco PTZ 4K Camera · Wireless LAN: Yes.

TAA-compliant and GPC-payable. Request a quote for current pricing, stock, and lead time.

Highlights

Fullfil all your conferencing needs with this video conference equipment that delivers clear, immersive sound and high quality video
60 fps frame rate refresh swiftly and dodge human reception time to decrease the chances of motion blur.
Featuring Gigabit Ethernet port for ultra-high quality communication
Simply plug in RJ-45 port to connect the conference equipment on the network
With the 10/100/1000Base-T technology, get up to 1000Mbps data transfer rate over the twisted pair cable
Supports H.460.18/19 ITU-T recommendations for high-quality enhanced performance
Government Purchase Card (GPC) accepted

Cisco Cisco Room Kit EQ PTZ 4K - Non- Radio - For Boardroom, Video Conferencing - CMOS - 3840 x 2160 Video (Live) - H.460.18/19, SIP, H.323, H.239 - 4K - 60 fps - H.264, H.265, H.263 - G.711, G.722, G.722.1 datasheet & specifications

Audio

Audio Encoding: G.711, G.722, G.722.1, G.729, AAC-LD, Opus
Speaker Form Factor: Internal
Microphone Form Factor: Internal

Miscellaneous

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Application/Usage: Boardroom, Video Conferencing

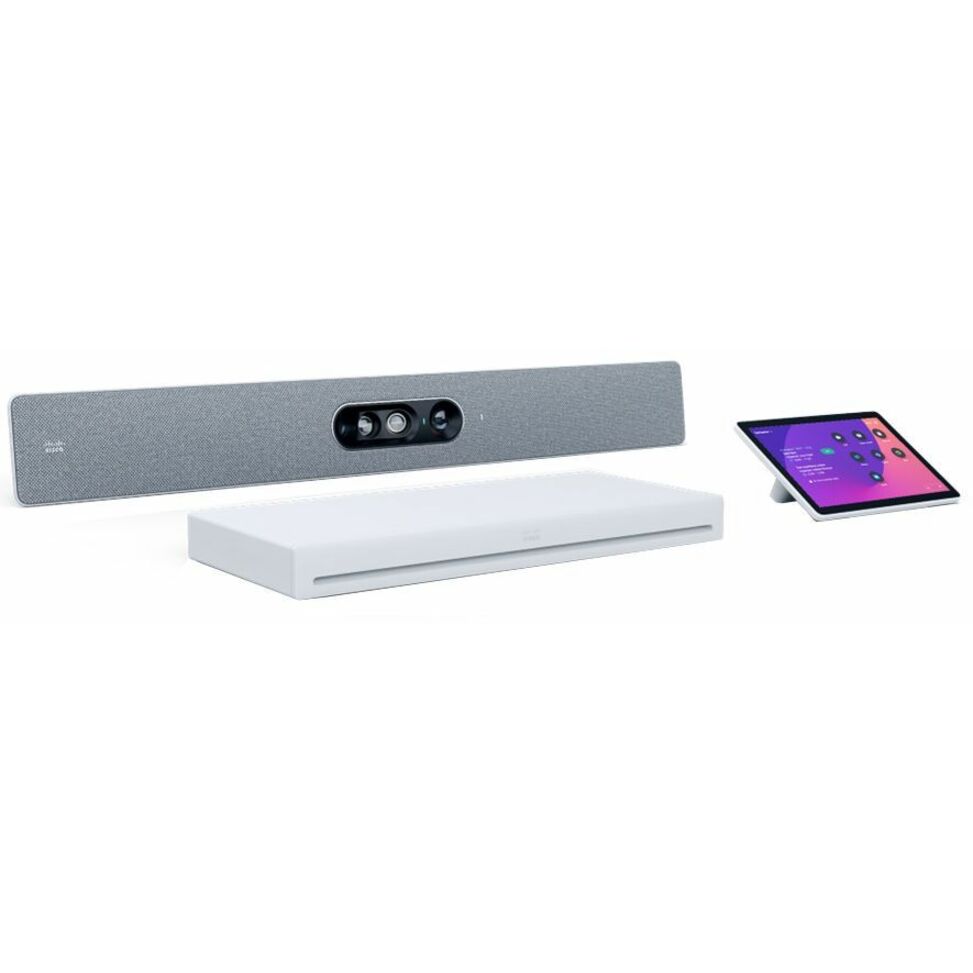

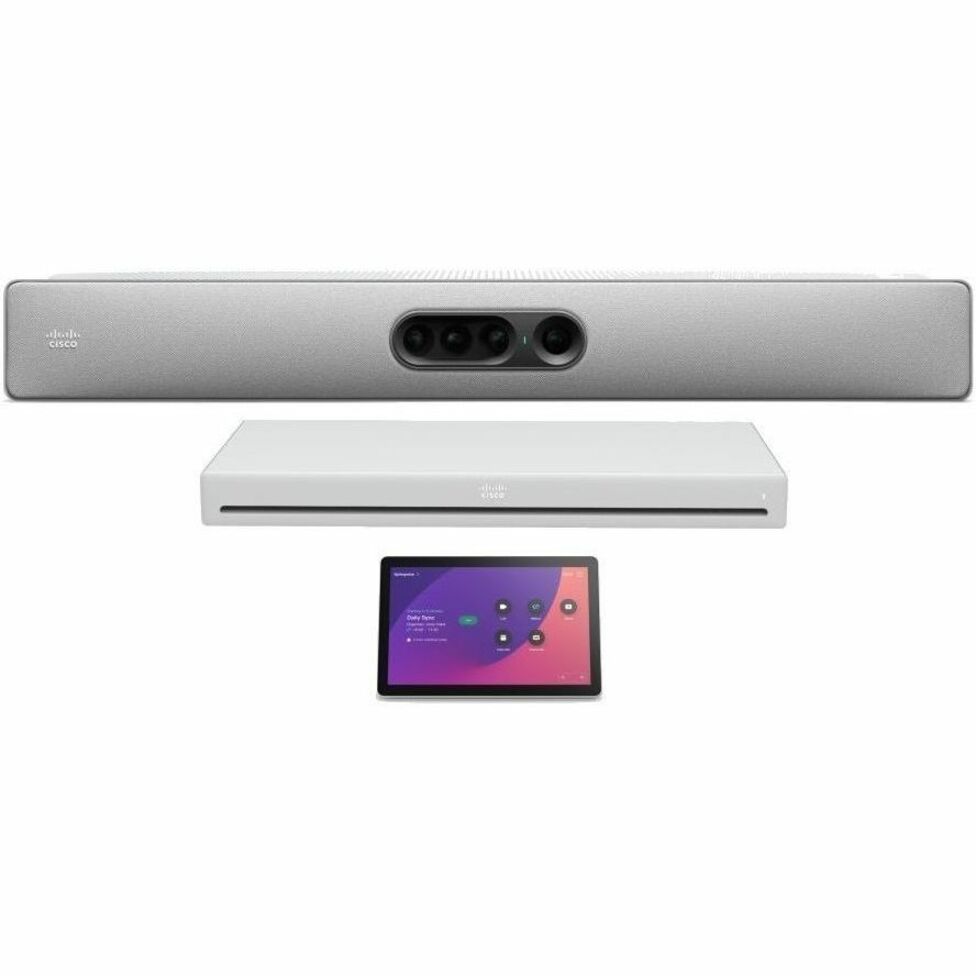

Package Contents: Cisco Codec EQ (Non-Radio) Cisco PTZ 4K Camera

Wireless Specifications

Wireless LAN: Yes

Technical Information

ITU-T Recommendation: H.460.18/19, SIP, H.323, H.239
Features: Echo Cancellation, Dual Stream, Kensington Lock, Digital PTZ

Operating System

Operating System Supported: RoomOS 11.1.2

Warranty

Limited Warranty: 90 Day Day

Video

Maximum Frame Rate: 60 fps fps
Maximum Video Resolution (Live): 3840 x 2160
Graphics Modes (Live): 4K
Video Encoding: H.264, H.265, H.263

Network & Communication

Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T

Physical Characteristics

Height: 5.1" mm
Width: 18.6" mm
Depth: 8" mm
Form Factor: Wall Mountable, Rack-mountable
Weight (Approximate): 5.10 lb g

Camera

Image Sensor Size: 1/1.7
Image Sensor Type: CMOS

Interfaces/Ports

USB: Yes
Number of Network (RJ-45) Ports: 5
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
Number of HDMI Inputs: 3
Number of HDMI Outputs: 3
HDMI In: Yes
HDMI Out: Yes
Number of Audio Line In: 1
Number of Audio Line Out: 1

General Information

Product Type: Video Conference Equipment
