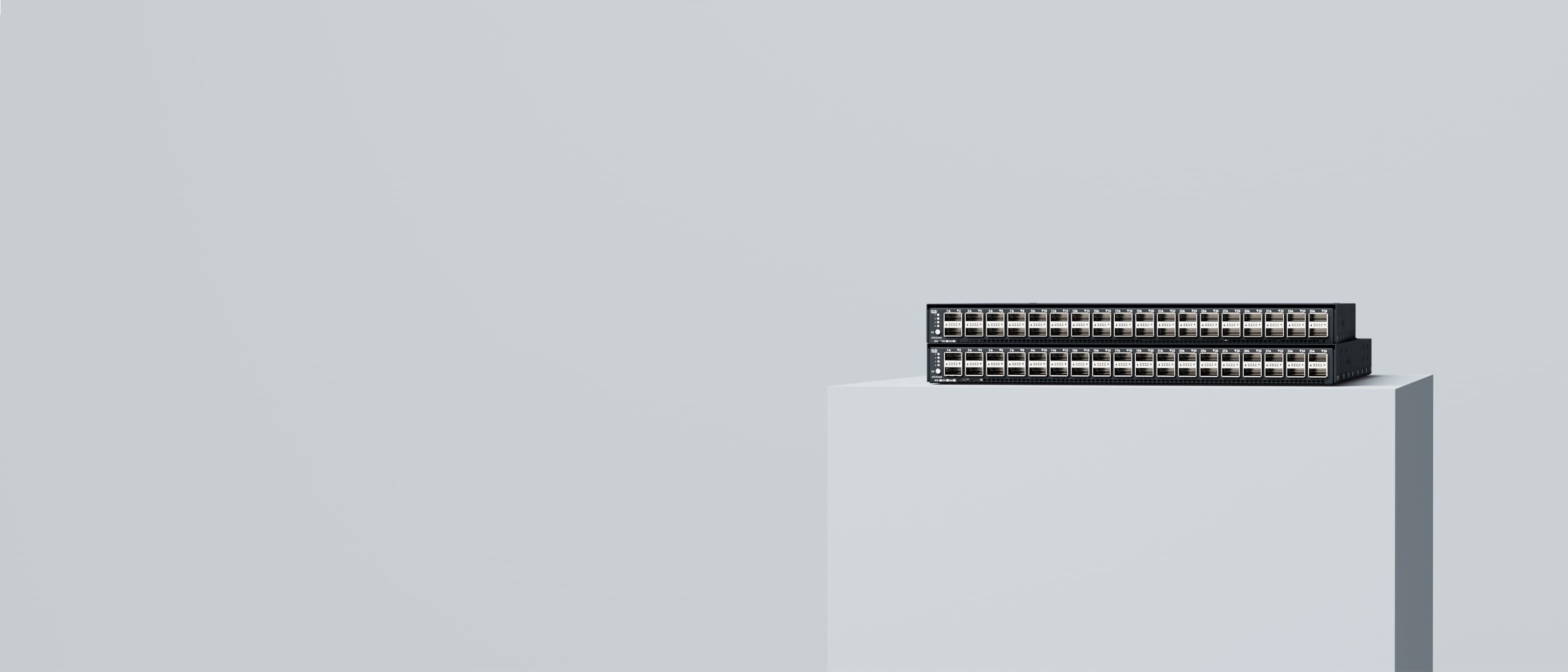

Cisco UCS fabric
Connect and control UCS with one unified fabric.
Cisco UCS fabric interconnects, virtual interface cards, intelligent fabric modules, and fabric extenders tie your compute together with high-speed, policy-driven connectivity. We size and deploy the full fabric.
Authorized Cisco PartnerTAA compliantDoDIN APL-readyGPC acceptedShips from US warehouses
Overview
Run your network with ease
Fabric interconnects are the single point of connectivity and management for a UCS domain, carrying LAN, SAN, and management traffic on one wire. Pair them with virtual interface cards, intelligent fabric modules, and fabric extenders to scale compute without scaling complexity.
The lineup
Models and platforms
Fabric interconnects
UCS 6664 Fabric Interconnect
- 64 ports
- Supports 10/25/50/100-Gigabit Ethernet
- 16 unified ports for 10/25/50G Ethernet or 16/32/64G Fibre Channel
- Up to 11.6 Tbps throughput
UCS 6652 Fabric Interconnect
- 52 ports
- Supports 10/25/50-Gigabit Ethernet
- 16 unified ports for 10/25/50G Ethernet or 16/32/64G Fibre Channel
- Up to 8.4 Tbps throughput
UCS 6536 Fabric Interconnect
- 36 ports
- Supports 1/10/25/40/100-Gigabit Ethernet or Fibre Channel over Ethernet (FCoE)
- 4 flexible unified ports to support 16ports of 8/16/32G FC and 10/25/100G Ethernet
- Up to 7.42 Tbps throughput
UCS 6400 Series Fabric Interconnects
- 54 or 108 ports
- Supports 1/10/25/40/100-Gigabit Ethernet or Fibre Channel over Ethernet (FCoE)
- 8 or 16 unified ports supporting 10/25 GE or 8/16/32-Gbps Fibre Channel
- Up to 3.82 Tbps with the UCS 6454
- Up to 7.42 Tbps with the UCS 64108
UCS 9108 100G Fabric Interconnect
- Exclusively for X-Series Direct
- Supports 1/10/25/40/100-Gigabit Ethernet or Fibre Channel over Ethernet (FCoE)
- 2 unified ports for Fibre Channel connectivity
- Up to 1.6 Tbps throughput
Virtual Interface Cards (VIC)
UCS VIC 15000 Series
- 15425 (PCIe) and 15427 (mLOM) for C-Series,
- 15420 (mLOM) and 15422 (Mezz) for X-Series
- 15235 (PCIe) and 15237 (mLOM) for C-Series,
- 15230 (mLOM) for X-Series
- 15411 (mLOM) for B-Series
UCS VIC 14000 Series for X-Series
- 25 Gbps
- 14425 (mLOM), 14825 (Mezz)
UCS VIC 1400 Series for B-Series
- 10/40 Gbps
- 1440 (mLOM)
- 1480 (Mezz)
UCS VIC 1400 Series for C-Series
- 10/25 Gbps: 1455 (PCIe) 1457/1467 (mLOM)
- 40/100 Gbps: 1477 (mLOM) 1495 (PCIe), 1497 (mLOM)
Intelligent Fabric Modules (IFM)
UCS X9516 X-Fabric PCIe Gen5 switch module
- X-fabric module for UCS X9508 chassis
- Ultra-low-latency PCIe Gen5 switching, SmartNIC support, and policy-based GPU/NIC provisioning
UCS 9108 25G Intelligent Fabric Module
- 8 25-Gbps uplink ports
- Lossless and deterministic converged fabric
UCS 9108 100G Intelligent Fabric Module
- 8 100-Gbps uplink ports
- Lossless and deterministic converged fabric
Fabric extenders
UCS 2408 Fabric Extender
- 8 25-Gbps uplink ports
- 1.04 Tbps switching performance
- Up to 320 Gbps of I/O to the chassis
UCS 2304 Fabric Extender
- 4 40-Gbps QSFP+ uplink ports
- Up to 320 Gbps of I/O to the chassis
- 4 40-Gbps Ethernet ports to chassis midplane
