Wireless access points
Cisco Meraki Catalyst CW9166I Tri Band IEEE 802.11ax 7.78 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 1 x Network (RJ-45) - 5 Gigabit Ethernet - Desktop, Ceili
SKU CW9166I-MR
We confirm current pricing, stock, and lead time on request.
- Free US shipping over $2,500.00
- Government Purchase Card (GPC) accepted
- Authorized Cisco partner, genuine warrantied hardware
- TAA-compliant & DoDIN APL procurement paths
- No payment up front, we confirm stock & final total
Overview

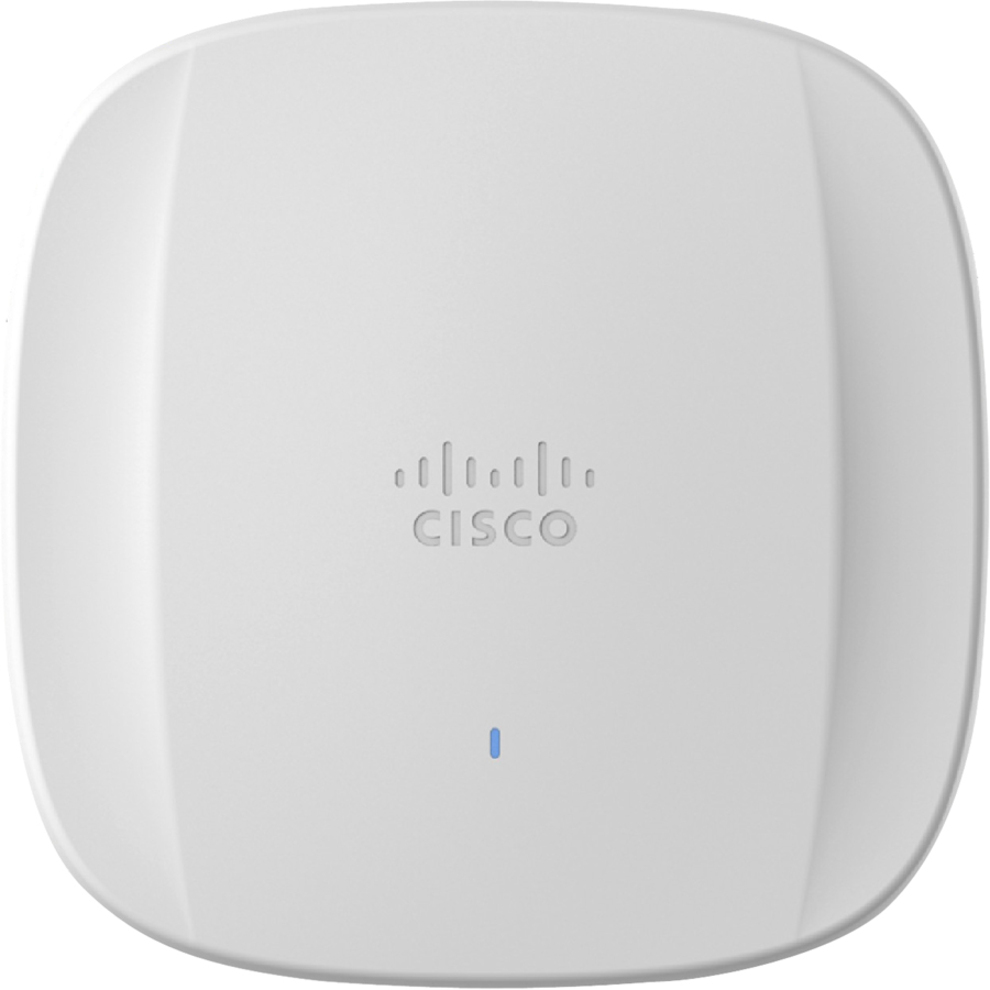

Cisco Meraki Catalyst CW9166I Tri Band IEEE 802.11ax 7.78 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 1 x Network (RJ-45) - 5 Gigabit Ethernet - Desktop, Ceiling Mountable, Wall Mountable, Junction Box Mount, Flush Mount, Rail-mountable, Plate Mountable (part number CW9166I-MR) is supplied by Uniqcli, an authorized Cisco partner, in the Cisco Wireless Access Points/Bridges category. Network Band: Tri Band.
2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 1 x Network (RJ-45) - 5 Gigabit Ethernet - Desktop, Ceiling Mountable, Wall Mountable, Junction Box Mount, Flush Mount, Rail-mountable, Plate Mountable
• 4x4:4 MU-MIMO 802.11ax compatible • 7.78 Gbps tri-radio aggregate frame rate • 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated fourth radio • Integrated Bluetooth Low Energy Beacon and scanning radio • Single 5 Gbps mGig Ethernet port support
Key specifications: Network Band: Tri Band · Frequency Band: 2.40 GHz Hz, 5 GHz Hz, 6 GHz Hz · Wireless LAN Standard: IEEE 802.11ax · Encryption Standard: AES, WPA3, WEP, WPA, WPA2-PSK, WPA2-ENT, WPA3-Personal, WPA3-ENT, TKIP · Data Encryption: Yes · MIMO Technology: Yes · Beamforming Technology: Yes · Wireless Transmission Speed: 7.78 Gbit/s Bps.
TAA-compliant and GPC-payable. Request a quote for current pricing, stock, and lead time.
Highlights
- 4x4:4 MU-MIMO 802.11ax compatible
- 7.78 Gbps tri-radio aggregate frame rate
- 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated fourth radio
- Integrated Bluetooth Low Energy Beacon and scanning radio
- Single 5 Gbps mGig Ethernet port support
- USB 2.0 host interface (Type A connector) with 4.5W power budget
- Enhanced transmit power and receive sensitivity
- Full-time Wi-Fi location tracking via dedicated 3rd radio
- Government Purchase Card (GPC) accepted
Cisco Cisco Meraki Catalyst CW9166I Tri Band IEEE 802.11ax 7.78 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 1 x Network (RJ-45) - 5 Gigabit Ethernet - Desktop, Ceili datasheet & specifications
Technical Information
- Network Band
- Tri Band
- Frequency Band
- 2.40 GHz Hz, 5 GHz Hz, 6 GHz Hz
- Wireless LAN Standard
- IEEE 802.11ax
- Encryption Standard
- AES, WPA3, WEP, WPA, WPA2-PSK, WPA2-ENT, WPA3-Personal, WPA3-ENT, TKIP
- Data Encryption
- Yes
- MIMO Technology
- Yes
- Beamforming Technology
- Yes
- Wireless Transmission Speed
- 7.78 Gbit/s Bps
Warranty
- Additional Warranty Information
- with advanced replacement
- Limited Warranty
- Lifetime
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Package Contents
- Catalyst 9166 CW9166I Wireless Access Point 2 x Security Screws
Interfaces/Ports
- Ethernet Technology
- 5 Gigabit Ethernet
- USB
- Yes
- Number of Network (RJ-45) Ports
- 1
- USB Standard
- USB 2.0
- PoE PD Port
- Yes
Physical Characteristics
- Antenna Form Factor
- Internal
- Height
- 9.5" mm
- Width
- 9.5" mm
- Depth
- 2.2" mm
- Form Factor
- Desktop, Ceiling Mountable, Wall Mountable, Junction Box Mount, Flush Mount, Rail-mountable, Plate Mountable
- Weight (Approximate)
- 3.54 lb g
General Information
- Product Type
- Wireless Access Point
- Product Model
- CW9166I
Documents & datasheets
Free download — tell us where to send it.
- Datasheet (PDF)
Official Cisco datasheet
Full specifications, port maps, power draw, and ordering details for this platform. Add your name and work email and the datasheet opens right here in our viewer.
Compare the CW9166I-MR
Frequently asked questions
How much does the Cisco Meraki Catalyst CW9166I Tri Band IEEE 802.11ax 7.78 Gbit/s Wireless Access Point - 2.40 GHz, 5 GHz, 6 GHz - Internal - MIMO Technology - 1 x Network (RJ-45) - 5 Gigabit Ethernet - Desktop, Ceili (CW9166I-MR) cost?
Pricing for the CW9166I-MR is available on request. Send a quick quote request and a Uniqcli specialist will confirm the current price, stock, and lead time, usually within one business day. Lower pricing is available for volume, GPC, and emergency-acquisition orders.
Is the CW9166I-MR TAA compliant and available for government and DoD buyers?
Yes. Uniqcli is an authorized Cisco partner and supports TAA-compliant, DoDIN APL-ready procurement of the CW9166I-MR for US federal, DoD, state, local, education, healthcare, and enterprise buyers. We accept the Government Purchase Card (GPC) and can support FAR-based urgent and emergency acquisitions.
Can I buy the CW9166I-MR as a single unit or in volume?
Both. Order a single CW9166I-MR through the cart, or ask about lower pricing for volume orders, Government Purchase Card (GPC) purchases, and emergency or urgent (FAR-based) acquisitions. There is no payment up front: we confirm availability and the final total before invoicing.
Where can I find the CW9166I-MR datasheet and specifications?
The official Cisco datasheet is available on this page (open the gated datasheet for the full PDF), and the Tech Specs section lists ports, power draw, dimensions, and licensing for the CW9166I-MR.
