Compute & UCS servers

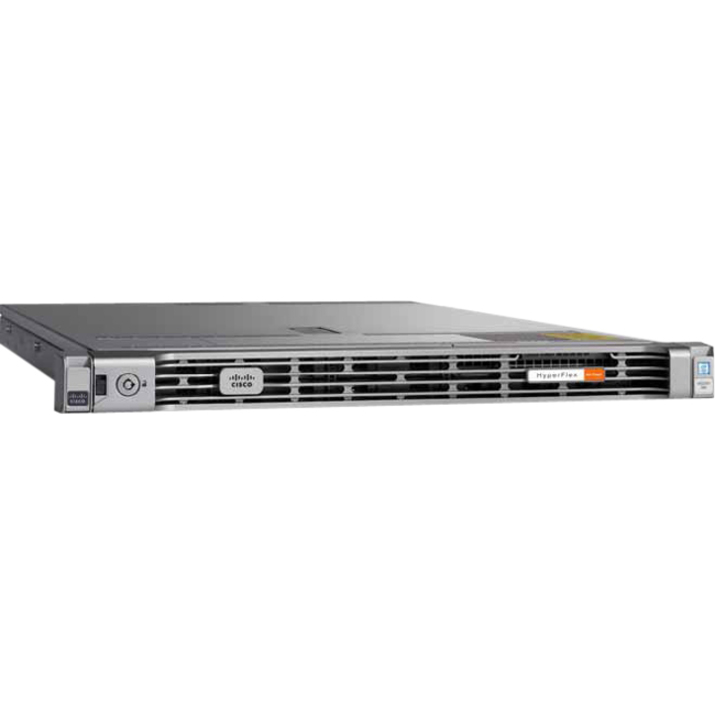

Cisco HyperFlex Server Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C610 Chip - 1.50 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS C
VPN# HXAF220C-M4S
We confirm current pricing, stock, and lead time on request.
- Free US shipping over $2,500.00
- Government Purchase Card (GPC) accepted
- Authorized Cisco partner, genuine warrantied hardware
- TAA-compliant & DoDIN APL procurement paths
- No payment up front, we confirm stock & final total
Overview
Cisco HyperFlex Server Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C610 Chip - 1.50 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS Controller 8 MB Graphic(s) - Processor Support (Xeon) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 770 W - 3 Year (part number HXAF220C-M4S) is supplied by Uniqcli, an authorized Cisco partner, in the Cisco Barebone Systems category. Chipset Manufacturer: Intel.
Intel C610 Chip - 1.50 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS Controller 8 MB Graphic(s) - Processor Support (Xeon) - Gigabit Ethernet - 2 USB 3.0 Port(s) - 2 x 770 W - 3 Year
• Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems • 12Gb/s SAS interface offers exceptional speed and reliability, ideal for enterprise-grade storage and high-performance systems • Rack-mountable server barebone system offers easy installation and convenient access for streamlined maintenance • With 2 USB ports, connect or disconnect devices without shutting down the system for convenience • Gigabit Ethernet increases data transfer capacity, delivering better overall performance for demanding network tasks
Key specifications: Chipset Manufacturer: Intel · Chipset Model: C610 · Number of Power Supplies Installed: 2 · Maximum Power Supply Wattage: 770 W W · Input Voltage: 120 V AC V AC, 230 V AC V AC · Number of Nodes: 1 · Number of Processors Supported: 2 · Processor Supported: Xeon.
TAA-compliant and GPC-payable. Request a quote for current pricing, stock, and lead time.
Highlights
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- 12Gb/s SAS interface offers exceptional speed and reliability, ideal for enterprise-grade storage and high-performance systems
- Rack-mountable server barebone system offers easy installation and convenient access for streamlined maintenance
- With 2 USB ports, connect or disconnect devices without shutting down the system for convenience
- Gigabit Ethernet increases data transfer capacity, delivering better overall performance for demanding network tasks
- DDR4 SDRAM slot synchronizes signals for efficient data throughput, ensuring fast and reliable system performance
- Government Purchase Card (GPC) accepted
Cisco Cisco HyperFlex Server Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C610 Chip - 1.50 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS C datasheet & specifications
Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C610
Power Description
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 770 W W
- Input Voltage
- 120 V AC V AC, 230 V AC V AC
Processor
- Number of Nodes
- 1
- Number of Processors Supported
- 2
- Processor Supported
- Xeon
Controllers
- RAID Supported
- No
- Controller Type
- 12Gb/s SAS
Network & Communication
- Ethernet Technology
- Gigabit Ethernet
I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of PCI Express x16 Slots
- 2
- Total Number of Expansion Slots
- 2
Memory
- Total Number of Memory Slots
- 24
- Memory Standard
- DDR4-2400/PC4-19200
- Memory Technology
- DDR4 SDRAM
- Maximum Memory Supported
- 1.50 TB Byte
Warranty
- Limited Warranty
- 3 Year Year
Physical Characteristics
- Height
- 1.7" mm
- Width
- 19" mm
- Depth
- 31" mm
- Rack Height
- 1U
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 37.90 lb g
Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 3.0 Ports
- 2
General Information
- Product Type
- Server Barebone System
- Product Series
- HXAF220c M4
Display & Graphics
- Graphics Memory Capacity
- 8 MB Byte
Frequently asked questions
How much does the Cisco HyperFlex Server Barebone System - 1U Rack-mountable - 2 x Processor Support - Intel C610 Chip - 1.50 TB DDR4 SDRAM DDR4-2400/PC4-19200 Maximum RAM Support - 24 Total Memory Slots - 12Gb/s SAS C (HXAF220C-M4S) cost?
Pricing for the HXAF220C-M4S is available on request. Send a quick quote request and a Uniqcli specialist will confirm the current price, stock, and lead time, usually within one business day. Lower pricing is available for volume, GPC, and emergency-acquisition orders.
Is the HXAF220C-M4S TAA compliant and available for government and DoD buyers?
Yes. Uniqcli is an authorized Cisco partner and supports TAA-compliant, DoDIN APL-ready procurement of the HXAF220C-M4S for US federal, DoD, state, local, education, healthcare, and enterprise buyers. We accept the Government Purchase Card (GPC) and can support FAR-based urgent and emergency acquisitions.
Can I buy the HXAF220C-M4S as a single unit or in volume?
Both. Order a single HXAF220C-M4S through the cart, or ask about lower pricing for volume orders, Government Purchase Card (GPC) purchases, and emergency or urgent (FAR-based) acquisitions. There is no payment up front: we confirm availability and the final total before invoicing.
Where can I find the HXAF220C-M4S datasheet and specifications?
The official Cisco datasheet is available on this page (open the gated datasheet for the full PDF), and the Tech Specs section lists ports, power draw, dimensions, and licensing for the HXAF220C-M4S.
