Catalyst switches

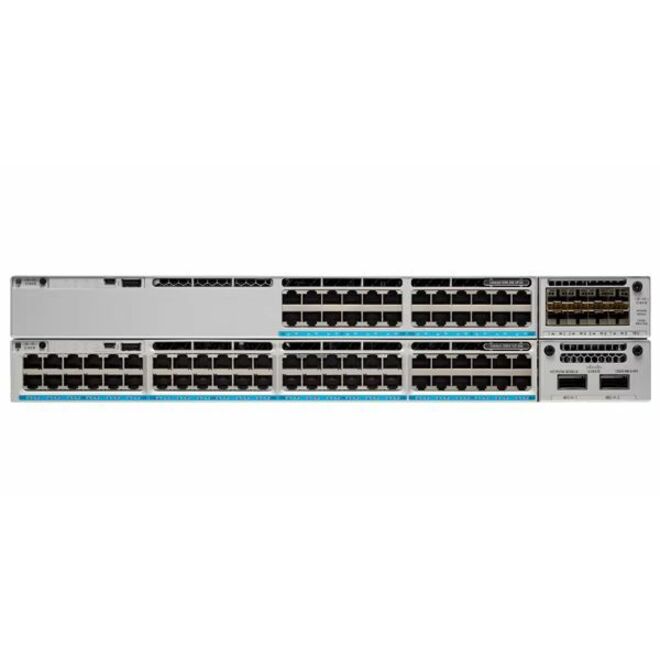

Cisco Catalyst C9300X-48HXN Ethernet Switch
VPN# C9300X-48HXN-A-RF
Available to order · ships in ~1–2 weeks
Pre-tax. GPC accepted; ask about volume and emergency-acquisition pricing.
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- 10 Gigabit Ethernet
- Ethernet Technology
- 5 Gigabit Ethernet
- Product Family
- Catalyst 9300
- Stack Port
- Yes
- Media Type Supported
- Twisted Pair
- Total Number of Network Ports
- 48
- Government Purchase Card (GPC) accepted
- TAA-compliant & government contract-vehicle ready
Overview
Cisco Catalyst C9300X-48HXN Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 5 Gigabit Ethernet - 10GBase-T - Refurbished - 3 Layer Supported - Modular - 1100 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - Gray - Rack-mountable (part number C9300X-48HXN-A-RF) is supplied by Uniqcli, an authorized Cisco partner, in the Cisco Switches & Bridges category. Manageable: Yes.
48 Ports - Manageable - 10 Gigabit Ethernet, 5 Gigabit Ethernet - 10GBase-T - Refurbished - 3 Layer Supported - Modular - 1100 W Power Consumption - 90 W PoE Budget - Twisted Pair - PoE Ports - Gray - Rack-mountable
• Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models • Catalyst 9300 and Catalyst 9300L models are based on the Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with templatebased, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries • Catalyst 9300X models are based on UADP 2.0sec ASIC which adds line rate support for Crypto, including 100G hardware-based IPsec • x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering up to 240GB of storage with an option SSD drive) to host containers. C9300X models support 16GB of memory • USB 2.0 slot to load system images and set configurations
Key specifications: Manageable: Yes · Number of Power Supplies Supported: 2 · Number of Power Supplies Installed: 1 · PoE (RJ-45) Port: Yes · Redundant Power Supply Supported: Yes · PoE Budget: 90 W W · Power Consumption: 1100 W W · Input Voltage: 120 V AC, 230 V AC.
TAA-compliant and GPC-payable. Request a quote for current pricing, stock, and lead time.
Highlights
- Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models
- Catalyst 9300 and Catalyst 9300L models are based on the Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with templatebased, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
- Catalyst 9300X models are based on UADP 2.0sec ASIC which adds line rate support for Crypto, including 100G hardware-based IPsec
- x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering up to 240GB of storage with an option SSD drive) to host containers. C9300X models support 16GB of memory
- USB 2.0 slot to load system images and set configurations
- Up to 1 TBps of local stackable switching bandwidth with Catalyst 9300X models
- Deeper buffer and higher scale model options for rich multi-media content delivery applications
- Flexible and dense uplink offerings with 100G, 40G, 25G, Multigigabit, 10G, and 1G as fixed or modular uplinks
- Government Purchase Card (GPC) accepted
Cisco Cisco Catalyst C9300X-48HXN Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 5 Gigabit Ethernet - 10GBase-T - Refurbished - 3 Layer Supported - Modular - 1100 W Power Consumption - 90 W datasheet & specifications
Management & Protocols
- Manageable
- Yes
Power Description
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- PoE (RJ-45) Port
- Yes
- Redundant Power Supply Supported
- Yes
- PoE Budget
- 90 W W
- Power Consumption
- 1100 W W
- Input Voltage
- 120 V AC, 230 V AC
- Power Source
- Power Supply, AC
Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet, 5 Gigabit Ethernet
- Media Type Supported
- Twisted Pair
- Network Technology
- 10GBase-T
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Total Number of Network Ports
- 48
- Port/Expansion Slot Details
- 8 x 10 Gigabit Ethernet UPoE+, 1 x Uplink, 40 x 5 Gigabit Ethernet UPoE+
Network & Communication
- Networking Standards
- IEEE 802.1br, IEEE 802.1ae, IEEE 802.1s, IEEE 802.1w, IEEE 802.1AVB, IEEE 802.3bt, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3at, IEEE 802.3af, IEEE 802.3x, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3u, IEEE 802.3, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an
- Layer Supported
- 3
Physical Characteristics
- Product Color
- Gray
- Height
- 1.7" mm
- Width
- 17.5" mm
- Depth
- 17.6" mm
- Form Factor
- Rack-mountable
- Weight (Approximate)
- 14.20 lb g
I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- Uplink Module
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
General Information
- Product Type
- Ethernet Switch
- Product Condition
- Refurbished
- Product Series
- 9300
- Product Model
- C9300X-48HXN
Documents & datasheets
Free download — tell us where to send it.
- Manufacturer Brochure (PDF)
Official Cisco datasheet
Full specifications, port maps, power draw, and ordering details for this platform. Add your name and work email and the datasheet opens right here in our viewer.
Frequently asked questions
How much does the Cisco Catalyst C9300X-48HXN Ethernet Switch - 48 Ports - Manageable - 10 Gigabit Ethernet, 5 Gigabit Ethernet - 10GBase-T - Refurbished - 3 Layer Supported - Modular - 1100 W Power Consumption - 90 W (C9300X-48HXN-A-RF) cost?
Uniqcli sells the C9300X-48HXN-A-RF for $11,518.53 against a Cisco list price of $16,974.40. Add it to your cart and submit to confirm current pricing, stock, and lead time. Lower pricing is available for volume orders, Government Purchase Card (GPC) buys, and emergency or urgent acquisitions. Free US shipping on orders over $2,500.00.
Is the C9300X-48HXN-A-RF TAA compliant and available for government and DoD buyers?
Often yes — it depends on the unit. Cisco manufactures the C9300X-48HXN-A-RF in several countries, so Trade Agreements Act (TAA) status varies by production lot. Uniqcli is an authorized Cisco partner: we confirm the country of origin before shipment, and if a given C9300X-48HXN-A-RF is not TAA-designated, we will source a TAA-certified equivalent of the same model. Either way the result is DoDIN APL-ready procurement for US federal, DoD, state, local, education, healthcare, and enterprise buyers, with Government Purchase Card (GPC) acceptance and FAR-based urgent and emergency acquisition support. Request a TAA-compliant quote for the C9300X-48HXN-A-RF and a specialist will confirm compliance, price, and lead time — usually within one business day.
Can I buy the C9300X-48HXN-A-RF as a single unit or in volume?
Both. Order a single C9300X-48HXN-A-RF through the cart, or ask about lower pricing for volume orders, Government Purchase Card (GPC) purchases, and emergency or urgent (FAR-based) acquisitions. There is no payment up front: we confirm availability and the final total before invoicing.
Where can I find the C9300X-48HXN-A-RF datasheet and specifications?
The official Cisco datasheet is available on this page (open the gated datasheet for the full PDF), and the Tech Specs section lists ports, power draw, dimensions, and licensing for the C9300X-48HXN-A-RF.
Need the C9300X-48HXN-A-RF TAA-compliant for federal or DoD?
Cisco builds this model in multiple countries, so TAA status depends on the production lot. We confirm country of origin before shipment — and if a unit isn't TAA-designated, we'll quote a TAA-certified equivalent of the same model, DoDIN APL-ready and GPC-payable.
