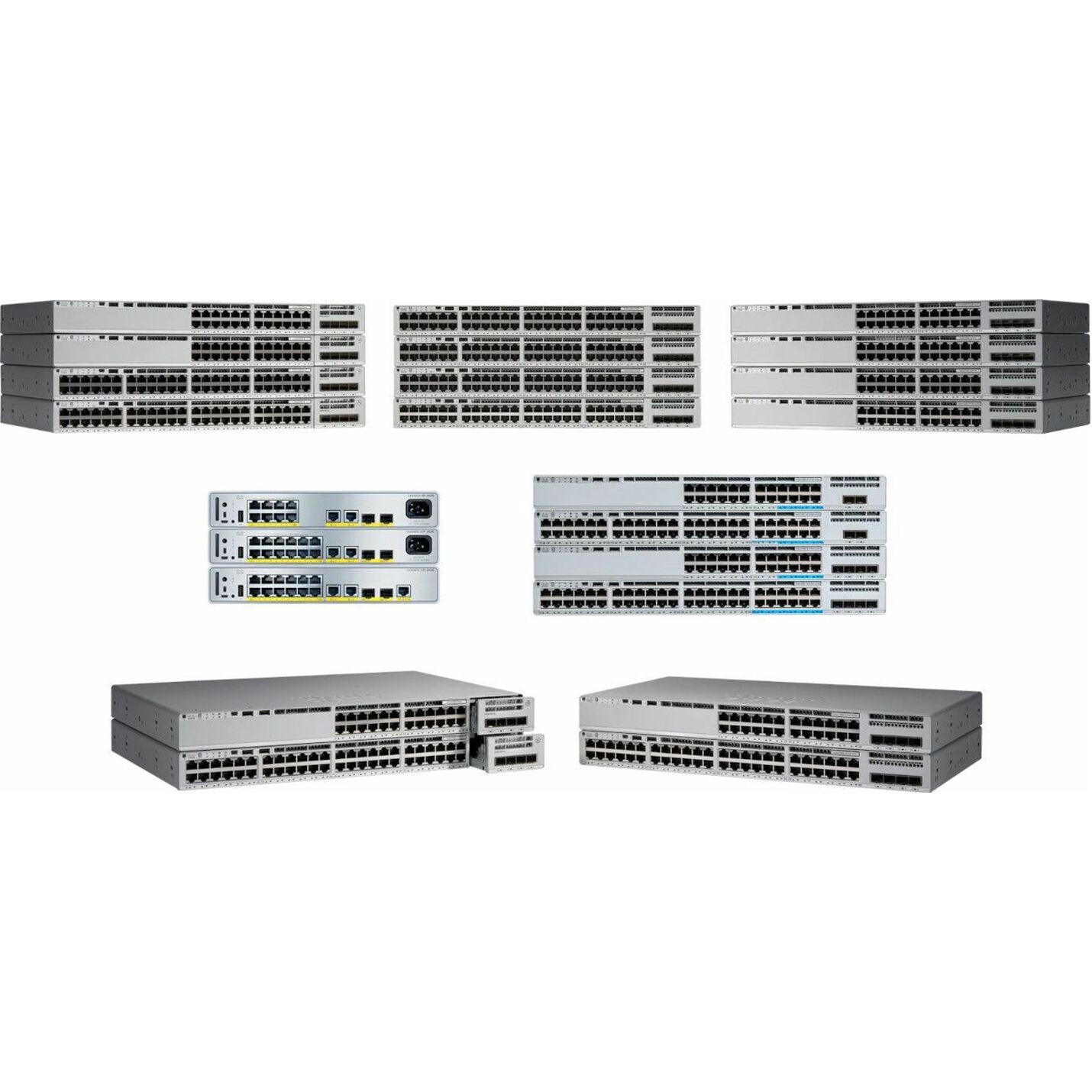

Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch

Name: Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch - 12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twiste
Brand: Cisco
SKU: C9200CX-12P-1E
Price: 2385.20 USD
Availability: InStock

VPN# C9200CX-12P-1E

Available to order · ships in ~1–2 weeks

$2,385.20MSRP $3,505.45

Pre-tax. GPC accepted; ask about volume and emergency-acquisition pricing.

Product Type: Ethernet Switch
Manageable: Yes
Ethernet Technology: 10 Gigabit Ethernet
Ethernet Technology: Gigabit Ethernet
Product Family: Catalyst 9200
Media Type Supported: Optical Fiber
Media Type Supported: Twisted Pair
Total Number of Network Ports: 12

Government Purchase Card (GPC) accepted
TAA-compliant & government contract-vehicle ready

Overview

Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch - 12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Wall Mountable, Under Table, Compact - Lifetime Limited Warranty (part number C9200CX-12P-1E) is supplied by Uniqcli, an authorized Cisco partner, in the Cisco Switches & Bridges category. Manageable: Yes.

12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Wall Mountable, Under Table, Compact - Lifetime Limited Warranty

• Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX. • Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE. • Flexible downlink options with data, PoE+ or mGig • Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps • UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure

Key specifications: Manageable: Yes · Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet · Media Type Supported: Optical Fiber, Twisted Pair · Network Technology: 10GBase-T, 10GBase-X, 1000Base-T · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes · Total Number of Network Ports: 12.

TAA-compliant and GPC-payable. Request a quote for current pricing, stock, and lead time.

Highlights

Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
Flexible downlink options with data, PoE+ or mGig
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
Advanced network monitoring using Full Flexible NetFlow
Government Purchase Card (GPC) accepted

Cisco Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch - 12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twiste datasheet & specifications

Management & Protocols

Manageable: Yes

Media & Performance

Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
Media Type Supported: Optical Fiber, Twisted Pair
Network Technology: 10GBase-T, 10GBase-X, 1000Base-T

Interfaces/Ports

Network (RJ-45): Yes
Modular: Yes
Uplink Port: Yes
Total Number of Network Ports: 12
Port/Expansion Slot Details: 12 x Gigabit Ethernet Ports PoE+, 2 x 10 Gigabit Ethernet Uplink, 2 x 10 Gigabit Ethernet Network

Power Description

PoE (RJ-45) Port: Yes
Power Source: Power Supply

Network & Communication

Networking Standards: IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae, IEEE 802.3bz, IEEE 802.3an
Layer Supported: 3

Warranty

Limited Warranty: Lifetime

I/O Expansions

Number of SFP+ Slots: 2
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+

Technical Information

Features: Fanless

Miscellaneous

Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)

Physical Characteristics

Height: 1.7" mm
Width: 9.6" mm
Depth: 10.6" mm
Form Factor: Rack-mountable, Wall Mountable, Under Table, Compact
Weight (Approximate): 6.60 lb g

General Information

Product Type: Ethernet Switch
Product Series: 9200
Product Model: C9200CX-12P-2X2G

Documents & datasheets

Free download — tell us where to send it.

Document (PDF)

Official Cisco datasheet

Full specifications, port maps, power draw, and ordering details for this platform. Add your name and work email and the datasheet opens right here in our viewer.

Frequently asked questions

How much does the Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch - 12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twiste (C9200CX-12P-1E) cost?

Uniqcli sells the C9200CX-12P-1E for $2,385.20 against a Cisco list price of $3,505.45. Add it to your cart and submit to confirm current pricing, stock, and lead time. Lower pricing is available for volume orders, Government Purchase Card (GPC) buys, and emergency or urgent acquisitions. Free US shipping on orders over $2,500.00.

Is the C9200CX-12P-1E TAA compliant and available for government and DoD buyers?

Often yes — it depends on the unit. Cisco manufactures the C9200CX-12P-1E in several countries, so Trade Agreements Act (TAA) status varies by production lot. Uniqcli is an authorized Cisco partner: we confirm the country of origin before shipment, and if a given C9200CX-12P-1E is not TAA-designated, we will source a TAA-certified equivalent of the same model. Either way the result is DoDIN APL-ready procurement for US federal, DoD, state, local, education, healthcare, and enterprise buyers, with Government Purchase Card (GPC) acceptance and FAR-based urgent and emergency acquisition support. Request a TAA-compliant quote for the C9200CX-12P-1E and a specialist will confirm compliance, price, and lead time — usually within one business day.

Can I buy the C9200CX-12P-1E as a single unit or in volume?

Both. Order a single C9200CX-12P-1E through the cart, or ask about lower pricing for volume orders, Government Purchase Card (GPC) purchases, and emergency or urgent (FAR-based) acquisitions. There is no payment up front: we confirm availability and the final total before invoicing.

Where can I find the C9200CX-12P-1E datasheet and specifications?

The official Cisco datasheet is available on this page (open the gated datasheet for the full PDF), and the Tech Specs section lists ports, power draw, dimensions, and licensing for the C9200CX-12P-1E.

Need the C9200CX-12P-1E TAA-compliant for federal or DoD?

Cisco builds this model in multiple countries, so TAA status depends on the production lot. We confirm country of origin before shipment — and if a unit isn't TAA-designated, we'll quote a TAA-certified equivalent of the same model, DoDIN APL-ready and GPC-payable.
