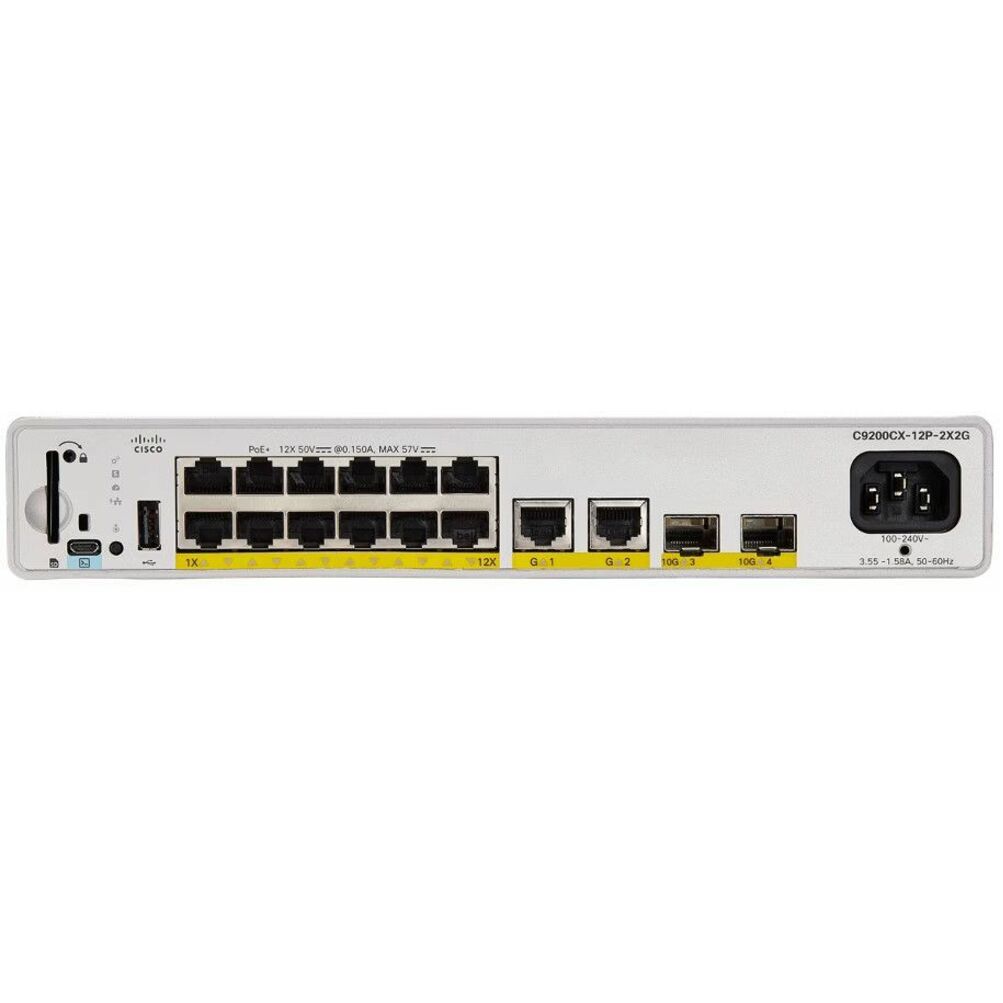

Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch
VPN# C9200CX-12P-2X2G-A-1074447308
3 in stock · same-day shipping from US warehouses
We confirm current pricing, stock, and lead time on request.
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- 10 Gigabit Ethernet
- Ethernet Technology
- Gigabit Ethernet
- Product Family
- Catalyst 9200
- Media Type Supported
- Optical Fiber
- Media Type Supported
- Twisted Pair
- Total Number of Network Ports
- 12
- Government Purchase Card (GPC) accepted
- TAA-compliant & government contract-vehicle ready
Overview
Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch - 12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Wall Mountable, Under Table, Compact - Lifetime Limited Warranty (part number C9200CX-12P-2X2G-A) is supplied by Uniqcli, an authorized Cisco partner, in the Cisco Switches & Bridges category. Manageable: Yes.
12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twisted Pair - PoE Ports - Rack-mountable, Wall Mountable, Under Table, Compact - Lifetime Limited Warranty
• Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX. • Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE. • Flexible downlink options with data, PoE+ or mGig • Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps • UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
Key specifications: Manageable: Yes · Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet · Media Type Supported: Optical Fiber, Twisted Pair · Network Technology: 10GBase-T, 10GBase-X, 1000Base-T · Network (RJ-45): Yes · Modular: Yes · Uplink Port: Yes · Total Number of Network Ports: 12.
TAA-compliant and GPC-payable. Request a quote for current pricing, stock, and lead time.
Highlights
- Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200 and Power over Ethernet Plus (PoE+) capability for up to 12 ports for C9200CX. Available in fan less variants for C9200CX.
- Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200. C9200CX are powered by internal fixed power supply or optional power adapters, when not powered by upstream 802.3bt type4 90W PSE.
- Flexible downlink options with data, PoE+ or mGig
- Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
- UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
- Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX variants, policy-based segmentation, and trustworthy solutions for the whole C9200 family
- Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
- Advanced network monitoring using Full Flexible NetFlow
- Government Purchase Card (GPC) accepted
Cisco Cisco Catalyst C9200CX-12P-2X2G Ethernet Switch - 12 Ports - Manageable - 10 Gigabit Ethernet, Gigabit Ethernet - 10GBase-T, 10GBase-X, 1000Base-T - 3 Layer Supported - Modular - Optical Fiber, Twiste datasheet & specifications
Management & Protocols
- Manageable
- Yes
Media & Performance
- Ethernet Technology
- 10 Gigabit Ethernet, Gigabit Ethernet
- Media Type Supported
- Optical Fiber, Twisted Pair
- Network Technology
- 10GBase-T, 10GBase-X, 1000Base-T
Interfaces/Ports
- Network (RJ-45)
- Yes
- Modular
- Yes
- Uplink Port
- Yes
- Total Number of Network Ports
- 12
- Port/Expansion Slot Details
- 12 x Gigabit Ethernet Ports PoE+, 2 x 10 Gigabit Ethernet Uplink, 2 x 10 Gigabit Ethernet Network
Power Description
- PoE (RJ-45) Port
- Yes
- Power Source
- Power Supply
Network & Communication
- Networking Standards
- IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1ae, IEEE 802.3bz, IEEE 802.3an
- Layer Supported
- 3
Warranty
- Limited Warranty
- Lifetime
I/O Expansions
- Number of SFP+ Slots
- 2
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP+
Technical Information
- Features
- Fanless
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
Physical Characteristics
- Height
- 1.7" mm
- Width
- 9.6" mm
- Depth
- 10.6" mm
- Form Factor
- Rack-mountable, Wall Mountable, Under Table, Compact
- Weight (Approximate)
- 6.60 lb g
General Information
- Product Type
- Ethernet Switch
- Product Series
- 9200
- Product Model
- C9200CX-12P-2X2G
