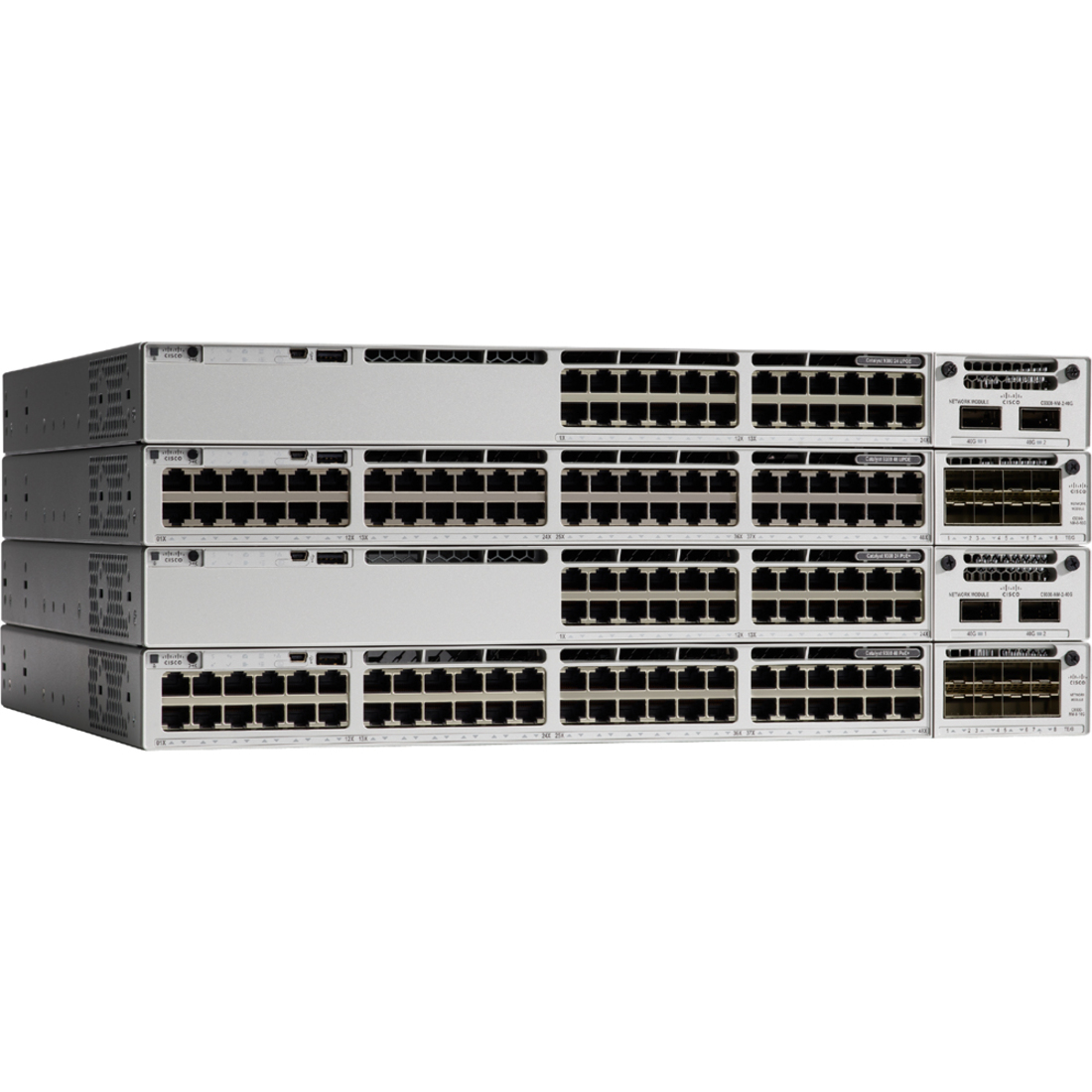

Cisco Catalyst 9300X-12Y Ethernet Switch
VPN# C9300X-12Y-E-1068370686
3 in stock · same-day shipping from US warehouses
We confirm current pricing, stock, and lead time on request.
- Product Type
- Ethernet Switch
- Manageable
- Yes
- Ethernet Technology
- 25 Gigabit Ethernet
- Product Family
- Catalyst 9300
- Stack Port
- Yes
- Media Type Supported
- Optical Fiber
- Total Number of Expansion Slots
- 13.0
- Redundant Power Supply Supported
- Yes
- Government Purchase Card (GPC) accepted
- TAA-compliant & government contract-vehicle ready
Overview
Cisco Catalyst 9300X-12Y Ethernet Switch - Manageable - 3 Layer Supported - Modular - Optical Fiber - Desktop - Lifetime Limited Warranty (part number C9300X-12Y-E) is supplied by Uniqcli, an authorized Cisco partner, in the Cisco Switches & Bridges category. Manageable: Yes.
Manageable - 3 Layer Supported - Modular - Optical Fiber - Desktop - Lifetime Limited Warranty
• Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models • Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries • x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering 120GB of storage with an option SSD drive) to host containers • USB 2.0 slot to load system images and set configurations • Up to 480 Gbps of local stackable switching bandwidth
Key specifications: Manageable: Yes · Environmentally Friendly: Yes · Environmental Compliance: Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) · Country of Origin: United States · Package Contents: Catalyst 9300X-12Y Ethernet Switch Power Supply 3 x Field-replaceable Fans AC Power Cord · Ethernet Technology: 25 Gigabit Ethernet · Media Type Supported: Optical Fiber · Network Technology: 25GBase-X.
TAA-compliant and GPC-payable. Request a quote for current pricing, stock, and lead time.
Highlights
- Highest wireless scale for Wi-Fi 6 and 802.11ac Wave 2 access points supported on a single switch with select models
- Cisco UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
- x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot (delivering 120GB of storage with an option SSD drive) to host containers
- USB 2.0 slot to load system images and set configurations
- Up to 480 Gbps of local stackable switching bandwidth
- Deeper buffer and higher scale model options for rich multi-media content delivery applications
- Flexible and dense uplink offerings with 1G, Multigigabit, 10G, 25G, and 40G in the form of fixed or modular uplinks
- Easy transition from 10G to 25G with dual-rate optics
- Government Purchase Card (GPC) accepted
Cisco Cisco Catalyst 9300X-12Y Ethernet Switch - Manageable - 3 Layer Supported - Modular - Optical Fiber - Desktop - Lifetime Limited Warranty datasheet & specifications
Management & Protocols
- Manageable
- Yes
Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
- Package Contents
- Catalyst 9300X-12Y Ethernet Switch Power Supply 3 x Field-replaceable Fans AC Power Cord
Media & Performance
- Ethernet Technology
- 25 Gigabit Ethernet
- Media Type Supported
- Optical Fiber
- Network Technology
- 25GBase-X
Warranty
- Limited Warranty
- Lifetime
Network & Communication
- Layer Supported
- 3
I/O Expansions
- Total Number of Expansion Slots
- 13.0
- Expansion Slot Type
- Uplink Module, SFP28
Interfaces/Ports
- Modular
- Yes
- Uplink Port
- Yes
- Stack Port
- Yes
- Port/Expansion Slot Details
- 12 x 25 Gigabit Ethernet Expansion Slot, 1 x Uplink
Power Description
- Number of Power Supplies Supported
- 2
- Redundant Power Supply Supported
- Yes
- Plug/Connector Type
- IEC 60320 C16, C15, IEC 60320 C14
- Power Source
- Power Supply
Physical Characteristics
- Height
- 1.7" mm
- Width
- 17.5" mm
- Depth
- 17.6" mm
- Form Factor
- Desktop
General Information
- Product Type
- Ethernet Switch
- Product Series
- 9300
- Product Model
- C9300X-12Y
Official Cisco datasheet
Full specifications, port maps, power draw, and ordering details for this platform. Add your name and work email and the datasheet opens right here in our viewer.
Frequently asked questions
How much does the Cisco Catalyst 9300X-12Y Ethernet Switch - Manageable - 3 Layer Supported - Modular - Optical Fiber - Desktop - Lifetime Limited Warranty (C9300X-12Y-E-1068370686) cost?
Pricing for the C9300X-12Y-E-1068370686 is available on request. Send a quick quote request and a Uniqcli specialist will confirm the current price, stock, and lead time, usually within one business day. Lower pricing is available for volume, GPC, and emergency-acquisition orders.
Is the C9300X-12Y-E-1068370686 TAA compliant and available for government and DoD buyers?
Often yes — it depends on the unit. Cisco manufactures the C9300X-12Y-E-1068370686 in several countries, so Trade Agreements Act (TAA) status varies by production lot. Uniqcli is an authorized Cisco partner: we confirm the country of origin before shipment, and if a given C9300X-12Y-E-1068370686 is not TAA-designated, we will source a TAA-certified equivalent of the same model. Either way the result is DoDIN APL-ready procurement for US federal, DoD, state, local, education, healthcare, and enterprise buyers, with Government Purchase Card (GPC) acceptance and FAR-based urgent and emergency acquisition support. Request a TAA-compliant quote for the C9300X-12Y-E-1068370686 and a specialist will confirm compliance, price, and lead time — usually within one business day.
Can I buy the C9300X-12Y-E-1068370686 as a single unit or in volume?
Both. Order a single C9300X-12Y-E-1068370686 through the cart, or ask about lower pricing for volume orders, Government Purchase Card (GPC) purchases, and emergency or urgent (FAR-based) acquisitions. There is no payment up front: we confirm availability and the final total before invoicing.
Where can I find the C9300X-12Y-E-1068370686 datasheet and specifications?
The official Cisco datasheet is available on this page (open the gated datasheet for the full PDF), and the Tech Specs section lists ports, power draw, dimensions, and licensing for the C9300X-12Y-E-1068370686.
Need the C9300X-12Y-E-1068370686 TAA-compliant for federal or DoD?
Cisco builds this model in multiple countries, so TAA status depends on the production lot. We confirm country of origin before shipment — and if a unit isn't TAA-designated, we'll quote a TAA-certified equivalent of the same model, DoDIN APL-ready and GPC-payable.
